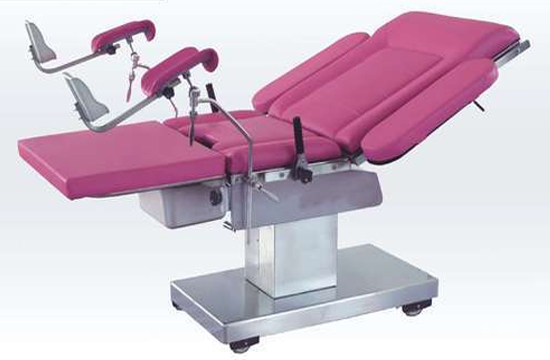

Remote Operated Obstetric OT Table

Technical Constraints :

Top dimension : L 1750 x W 600 mm
Height adjustment with pad : 700 mm – 950 mm
Trendelenburg / Reverse Trend : 15° / 15°
Back Rest (upward / downward) : 60° / 0°
Leg Rest (upward / downward) : 15° / 90°
Power supply : 24VDC
Patient Weight Capacity : 150 kgs (330 lbs)

Features :

Electromatic drives with noiseless, jerk less and smooth positioning.
Three section upholstered table top ensures maximum comfort to the patient.
Table positions i.e. Height adjustment, Trendelenburg, Reverse Trendelenburg, Back Section/Chair Position are controlled by corded handset with graphical icons.
Detachable leg sections offer perineal access & allow to attach drainage tray.
Integrated weight compensation by manual adjustment of leg section.
Large size stainless steel drainage tray
Non-corrosive stainless steel 304G construction including table top frames, accessories rail, base cover and column telescopic covers.
Easy for cleaning & hygiene.
The powered movements are activated by Imported Linear Actuators.
Four easy glide, antistatic castors, two of which are swivelling, ensure mobility.
Pedal operated central braking system secures the table in its place while in use.

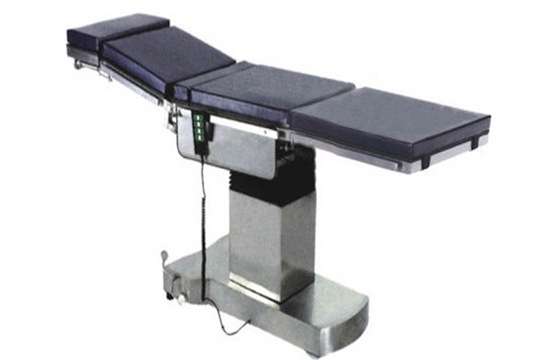

Electromatic Operation Table

Electrical operated surgical table designed to support Cardiology, Orthopedic, Neurology, Gynecology, Urology and ERCP Procedures. The table is equipped with a large translucent top providing maximum radiological access & C-ARM functions. Table is powered by Electric power system

Technical Specification :

Top dimension : L 1930 x W 533 mm
Height adjustment : 750 mm – 1000 mm
Trendelenburg / Reverse : 30° / 25°
Lateral tilt : 20° / 20°
Kidney elevator : 150 mm
Back Rest (up / down) : 80° / 25°
Leg Rest (up / down) : 15° / 90°
Head Rest (up / down) : 20° / 60°
Power supply : 24VDC
Battery Backup : 3 hours (optional)
Patient Weight Capacity : 200 kgs (440 lbs)

Features:

Specialized for cardiology, orthopaedic, neurology, ERCP, laparoscopy and urology.
The MI 101 offers outstanding imaging access and functionality, with a full length translucent top.
Offset positioning allows perfect access of C-Arm and clear access for surgeon.
Interchangeable head and leg sections offer optimum patient positioning.
The table has been made from acid proof, antirusted stainless steel 304G (the face of the table is easy to clean and immune to disinfection agents).
Corded handset for simple, intuitive control (height, trendelenburg, lateral tilt, flex-reflex, chair).

Optional :

Override Panel/Standby Controller: Additional control panel on the table column cover for continue operation in case of remote failure.
Zero Position to make table neutral by simply pressing '0' positioning button.
Memory Function - The microprocessor based control system is fully programmable and can store upto two user-programmable preset positions in its memory that can be recalled anytime by simply pressing M1 or M2 button.
Remote has LED backlit with symbolic position figures to use even in darkness.
Safety key to block motor system in critical operations.
Individual Locking Function.

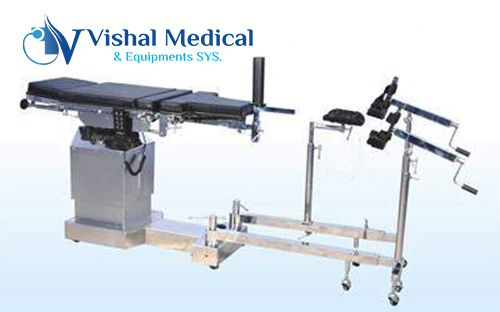

Operation Table (Side end Control) Semi-Electric

Features :

Five section table top gives ease for various surgical positions
Base & covered with 304G stainless steel Top to ensure high durability & hygiene for the operation room.
Leg section & Head section interchangeable
Radio-translucent top.

Electric Movement:

Hi-low

Mechanical Movement :

Flex-Reflex
Lateral tilt
Trendlenburg /Reverse Trendlenburg
Leg rest
Head rest
Kidney bridge
Floor lock

Standard Accessories:

Five section mattress :- 1 set
Anesthetist Screen :- 1 PCS
Padded Lateral Support :- 2 PCS
Padded Lateral Support :- 2 PCS
Padded Lithotomy crutches :- 2 PCS
Padded Arm rest :- 2 PCS
Drive handle :- 1 PCS

Technical Specification :

Overall Length of the table :- 1950mm
Overall width of the table :- 530mm
Minimum height of the table :- 780mm
Maximum height of the table :- 1030mm
TB/RTB :- 40 degree
Flex/Reflex :- 80/220 degree
Side Tilt :- 22 degree
Kidney section :- 125 mm manually
Leg Plate :- 90 degree Down
Hi-Low Lift :- Electric

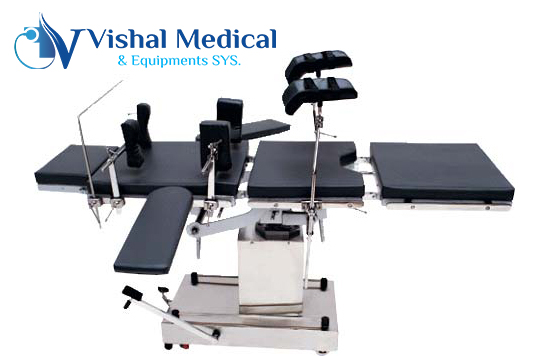

Hydraulic Operation Table

Features :

Five section table top gives ease for various surgical positions.
Base & covered with 304G stainless steel Top to ensure high durability & hygiene for the operation room.
Leg section & Head section interchangeable
Radio-translucent top provides easy convenience for xray procedures.
Interchangeable Head and Leg section.

Mechanical Movement :

Flex-Reflex
Lateral tilt
Trendlenburg /Reverse Trendlenburg
Leg rest
Head rest
Kidney bridge
Floor lock
Hi-Lo

Optional Accessories:

Orthopedic Attachment
Neuro Attachment (Mayfield, Sugita, Horse shoe)
Spine Frame attachment
Hand surgery attachment

Standard Accessories:

Five section mattress :- 1 set
Anesthetist Screen :- 1 PCS
Padded Lateral Support :- 2 PCS
Padded Lateral Support :- 2 PCS
Padded Lithotomy crutches :- 2 PCS
Padded Arm rest :- 2 PCS
Drive handle :- 1 PCS

Technical Specification :

Overall Length of the table :- 1950mm
Overall width of the table :- 530mm
Minimum height of the table :- 780mm
Head Section :- 90 degree Down / 70 degree up
TB/RTB :- 40 degree
Flex/Reflex :- 80/220 degree
Side Tilt :- 22 degree
Kidney section :- 125 mm manually
Leg Plate :- 90 degree Down
Hi-Low Lift :- Electric

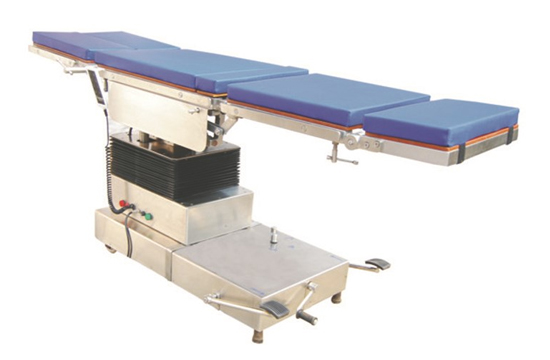

Electro Manual OT Table With Dual Operations

Product Details :

Adjustable : Yes
Condition : New
Electric Control : Yes
Foldable : Yes
Folded : Yes
Folding : Yes
Material : Stainless Steel
Portable : Yes
Table Type : Electronic, Hydraulic, Operation Table
Wheel : Yes

Features :

Electro-Manual drives with noiseless, jerk less and smooth positioning.
Table positions i.e. Height adjustment, Trendelenburg, Reverse Trendelenburg, Lateral Tilt, Back Section/Chair Position, Flex-Reflex, Longitudinal Top are controlled by corded Handset and Manual Override with graphical icons.
Zero Position to make table neutral by simply pressing ‘0’ positioning button.
Remote has LED backlit with symbolic position figures to use even in darkness.
Safety key to block motor system in critical operations.
Manually gear operated Kidney Elevator
Table top is divided into 5 sections providing numerous articulation possibilities.
Table top is c-arm & x-ray compatible.
The base of the table is scientifically designed ‘’T’’ shaped SS covered heavy base proving optimum foot room for comfortable posture of the surgeons.
Equipped with a large translucent sliding table top providing laparoscopy & C-arm functions without patient reversing.
Detachable-Interchangeable head and leg sections provide further versatility.
Integrated weight compensation by manual adjustment of the head and leg sections.
Non-corrosive stainless steel 304G construction including table top frames, accessories rail, base cover and column telescopic covers.
Easy for cleaning & hygiene.
The powered movements are activated by Imported Linear Actuators.
Four easy glide, antistatic castors, two of which are swiveling, ensure mobility.
50mm decompressed mattress with greater comfort & easy to clean.
Pedal operated braking system secures the table in its place while in use.
