O.T Equipment

  1. Home
  2. O.T Equipment
Horizontal Autoclave

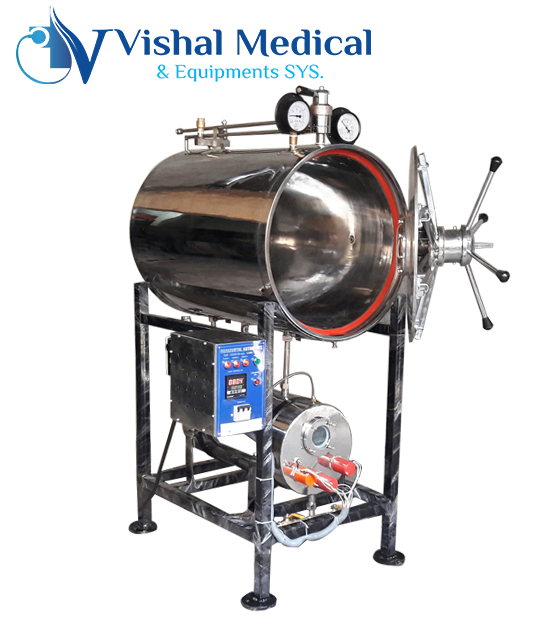

Horizontal Autoclave

Features :

  • Cylindrical / Rectangular design
  • Stainless steel interior and exterior
  • ISI marked flange / immersion heating elements
  • Working pressure 15 psi to 20 psi
  • Standard temperature 121°C
  • Silicon rubber door gasket
  • Digital Temperature controller
  • Digital Timer and alarm (buzzer)
  • Automatic pressure control switch
  • Reliable steam pressure gauges
  • Vacuum breaker and steam trap valve
  • Brass safety valves
  • Viewing glass water level check
  • Triple walled construction
  • Automatic water level cut-off
  • Powder coated / chrome plated MS Stand

Technical Specifications :

  • Design Type : Cylindrical or Rectangular
  • Construction : Triple Walled
  • Inner chamber : SS 304 with full argon welding
  • External chamber : SS 304
  • Finishing : Mirror finished inner and external surface
  • Insulation : Glass wool
  • Boiler : Made of SS 304 sheet, water inlet & outlet valves, Water level glass window, Boiler safety valve
  • All piping : SS 304
  • Chamber condensate line : Fitted with steam trap and check valve
  • Working temperature : 121°C
  • Working pressure : 15 to 20 psi
  • Hydraulic tested on : 40 psi
  • Controller type : PID temperature controller, Digital timer controller with END cycle buzzer
  • Sensor : PT100
  • Heaters : ISI mark immersion heaters
  • LID : SS 304 w/ Pressure locking device
  • Radial locking system : Chrome plated MS
  • Pressure : Automatic pressure control switch, Analog dial type pressure gauge, Manual pressure release valves for chamber & jacket
  • Multiport valve : Selection of sterilization, Only chamber pressure release, Full chamber / jacket both pressure release
  • Tray : Perforated tray made of SS 304
  • Standard fittings : Mains MCB, Silicon gasket, Vacuum breaker, Stream trap, Pressure safety valve, Boiler safety valve
  • Power supply : 440 Volts 50Hz, Three Phase
  • Optional : Working at 30 psi with 134°C, Provision of vacuum drying, Low water cut-off, Digital pressure display, Auto release of pressure through solenoid valves, Complete SS 304 / SS 316 construction (GMP model), PLC + Color HMI with Data logging, USB interface, Ethernet, Thermal printer
  • Stand : Chrome plated MS
Vertical Autoclave

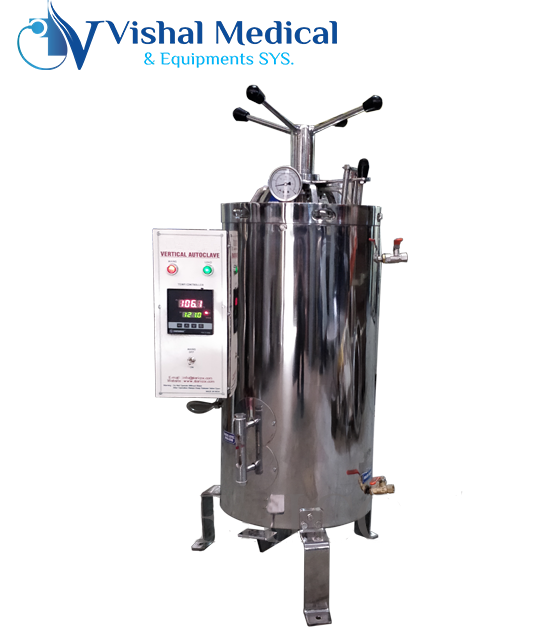

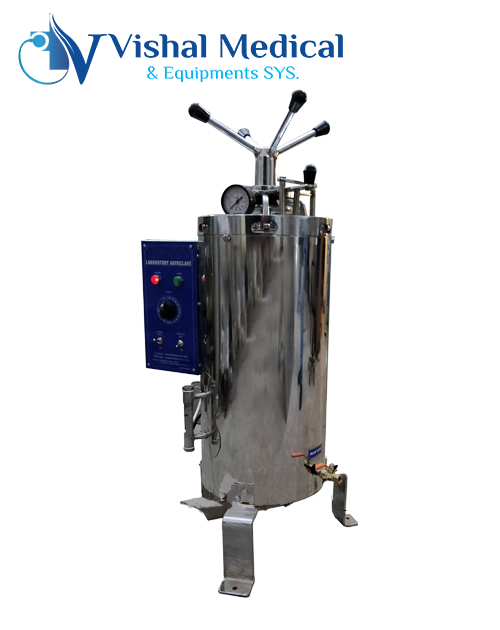

Vertical Autoclave

Features :

  • Stainless steel interior
  • Digital temperature indicator
  • Digital temperature Controller
  • ISI marked flange / immersion heating elements
  • Up to 121°C temperature range
  • Silicone rubber gasket
  • Automatic pressure control switch
  • Stainless steel basket
  • Reliable steam pressure gauges
  • Double or triple walled construction
  • Pedal for lid opening
  • Water level indicator
  • Water inlet & outlet valves

Technical Specifications :

  • Interior : SS 304 with silicon gasket
  • Working Pressure : 15 to 20 psi
  • Working Temperature : 121°C to 125°C
  • Controller : Auto set to 15psi & 121°C
  • Pressure display : Analog dial gauge
  • Timer : Mechanical timer
  • Hydraulic tested : Hydraulically Tested up to 40 psi (ASME Guideline)
  • Power supply : 220 Volts 50Hz
  • Standard Fittings : Low water indicator, Automatic pressure switch, Pedal lifting device, Steam release valve, Water outlet valve, Spring loaded safety valve, Power cable with three pin top
  • Optional Accessories : Fully stainless steel construction (GMP), Up to 134°C temperature range, PID temperature controller cum timer with alarm (buzzer), PLC with HMI interface with data logging, 21 CFR Part 11 software, Thermal Printer, Lower water cut-off
Double drum surgical autoclave for hospital use Double Drum Autoclave

Double drum surgical autoclave for hospital use Double Drum Autoclave

Double drum autoclave is one of mandatory sterilization equipment in any hospital, nursing home and even clinics. These steam sterilizers are designed to accommodate two types of dressing drums; 11 x 9 Inch (Dia. X Length) and 15 x 12 inch (Dia. X Length). These two drums are widely used in hospitals to sterilize dressings and other surgical instruments.

Standard models come in sizes 12 x 22 Inch and 16 X 24 inch (Dia. X Length). These surgical autoclaves are available for sale at wholesale price in India with user friendly warranty terms and reliable after sales service throughout India.

TECHNICAL SPECIFICATIONS:

  • MOC Exterior : Painted MS
  • Stand and ring : Chrome plated MS
  • Sterilization chamber : SS 304
  • Lid : Painted MS w/ SS inner line
  • Locking system : Radial locking mechanism w/ pedal lifting device
  • Pressure : 15 to 20 psi
  • Temperature : 121°C to 125°CMS
  • Pressure release : Manual release value
  • Pressure display : Dial pressure gauge
  • Pressure control : Automatic pressure control switch
  • Gasket : High temperature joint less silicone rubber gasket
  • Timer : Mechanical timer adjustable up to 60 minutes
  • Safety : Spring loaded safety valve on lid
  • Power supply : 220 Volts 50Hz
  • Test confirmation : Hydraulic tested at 2.5 times of working pressure
  • Standard fittings : Mains on/off switch, SS stand to keep drums, Water level indicator, Water drain valve, Power cord with three pin plug
  • Optional : Low water cut-off device, Dressing drums 11*9 Inch & 15*12 inch, All stainless steel construction, Triple walled construction, Digital temperature controller cum timer
Rectangular and Cylindrical Pass Through Autoclaves Double Door Autoclave

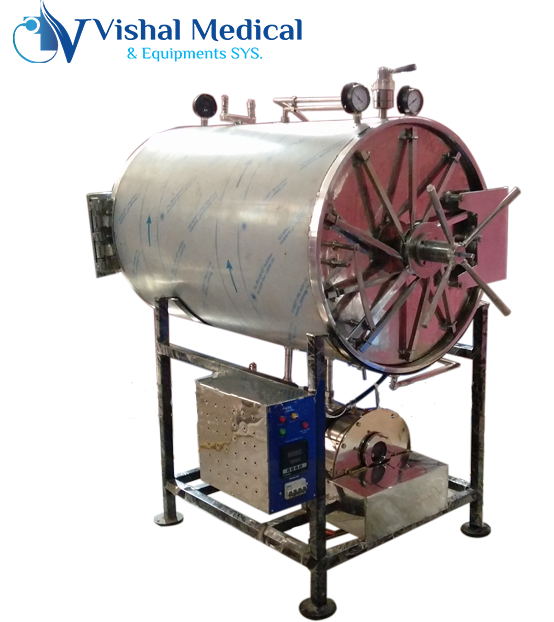

Rectangular and Cylindrical Pass Through Autoclaves Double Door Autoclave

Optional Features & Accessories :

  • Working at 30 psi with 134°C
  • PLC with HMI interface
  • Complete SS 316 construction
  • Doors at both sides
  • Provision for vacuum drying
  • Data logger with USB interface

Features & Benefits:

  • Cylindrical / Rectangular design
  • Stainless steel interior and exterior
  • ISI marked flange / immersion heating elements
  • Working pressure 15 psi to 20 psi
  • Standard temperature 121°C
  • Silicon rubber door gasket
  • Digital Temperature controller
  • Digital Timer and alarm (buzzer)
  • Automatic pressure control switch
  • Reliable steam pressure gauges
  • Vacuum breaker and steam trap valve
  • Brass safety valves
  • Viewing glass water level check
  • Triple walled construction
  • Automatic water level cut-off
  • Powder coated / chrome plated MS Stand
