diagnostic equipment

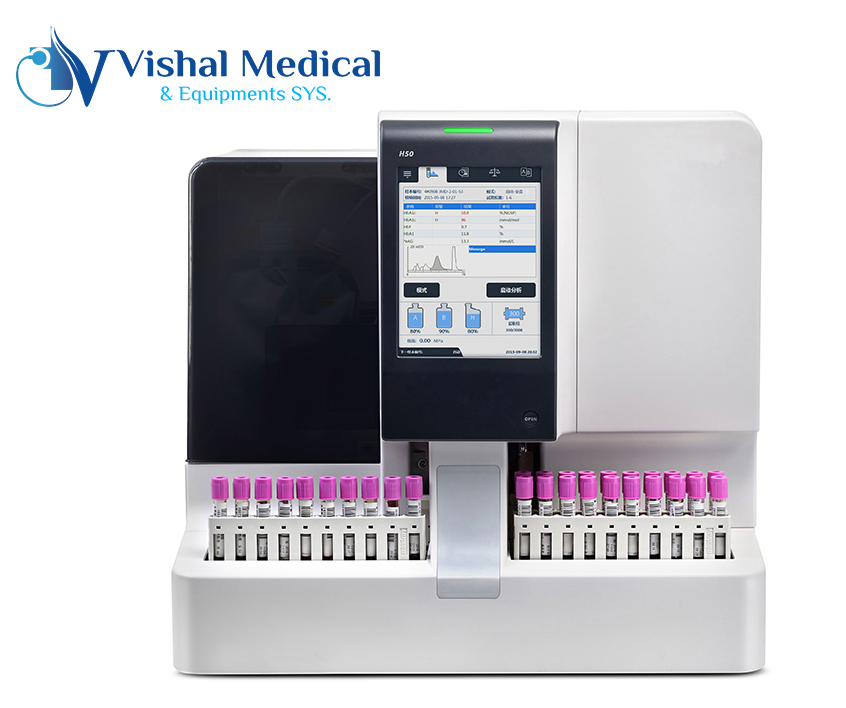

Automaed HPLC analyzer

Automaed HPLC analyzer

Code : H50

Mindray’s first HPLC analyzer, the H50, uses the high performance liquid chromatography (HPLC) analytical technique, a gold standard that helps detect glycosylated hemoglobin (HbA1c) with high precision. Its ability to directly measure stable HbA1c, HbF and other hemoglobin fractions assists clinicians in making quick, reliable therapeutic decisions and thereby improving patient care.

The H50 is positioned as a mid-end HPLC product on the global HbA1c market. The target customers of the H50 include medium general hospitals, public or private labs, and diabetes centers or institutions etc...

High performance :

  • Less than 1% CVs
  • Up to 50 samples per hour
  • More than 3,000 tests for one column
  • Large storage capacity of 50,000 results with chromatograms
  • Autoloader of 40 tubes with random access

User-friendly :

  • Intelligent reorganization of tube rack with RFID technology
  • Automatic reading of reagent information with RFID technology
  • Effective, automatic sample mixing by inversion
  • Easy to replace analytical columns
  • 8.4 inch TFT touch screen
  • Bi-directional LIS available

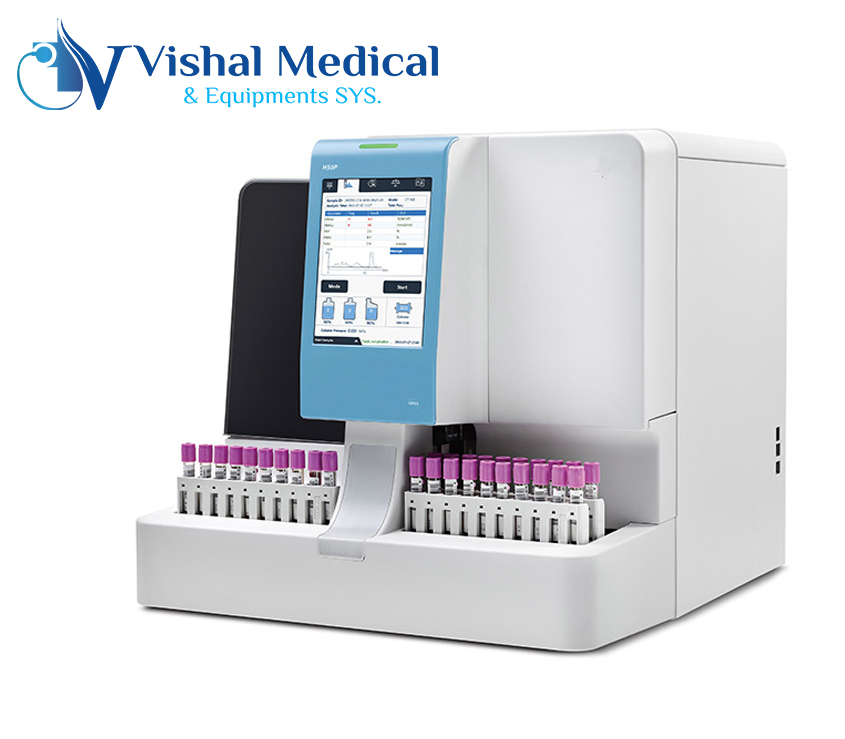

Automaed HPLC analyzer

Automaed HPLC analyzer

Code : H50P

H50P, featuring the gold-standard High Performance Liquid Chromatography (HPLC) method and a high throughput of 50 samples per hour, excels in detecting glycosylated hemoglobin with superior precision.

Features :

  • HPLC method for HbA1c testing
  • 4 parameters: HbF, HbA1c, HbA1, and eAG*
  • Less than 1% CVs
  • Two testing mode: Standard mode and HbE mode
  • Certified by NGSP and IFCC
  • 8.4 inch large-sized LED touch screen
  • Up to 50 samples per hour

  • First sample result reported within 3 minutes
  • 2 sampling modes: autoloader and closed tube
  • 40 tubes autoloader with random access
  • Intelligent tube rack recognition
  • Long-life analytical column
  • Radio Frequency(RF) technology for reading reagent information
  • Large storage capacity: 50,000 results
  • Bi-directional LIS supported
