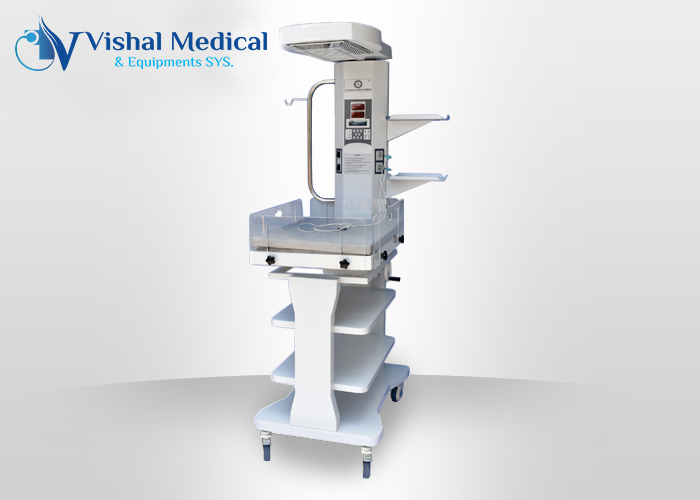

LCD Warmer

LCD Warmer

Advance Micro Processor Controlled systems with self check on the electronic circuitry. Skin / Air / Manual control latest technology with higher accuracy.

Description :

  • Fixed Cradle Warmer mounted with 4 swivel castor, 2 with breaks.
  • Baby Tray with thick mattress with variable head up / down facility.
  • X Ray cassette facility (optional).
  • 6 mm. thick drop down & lockable acrylic side panal.
  • Syringe / Infusion pump holder SS rod, Multiparameter / monitor holder side tray.
  • SS IV Stand.
  • Swivelling heater Source for X ray without disturbing baby.
  • Ceramic heater (650W) with SS reflector with safety grill.
  • LED examination lamp for procedure.
  • 2 Shelves for undersurface Phototherapy & storage.

Temprature Controller :

  • 2 Bright digital display for continuous monitoring of baby & air temp.
  • LCD is provided for more information & visualization of heater power in manual & servo mode.
  • A full panel of alarms provides safety & convenience.
  • High / Low Temp
  • Over Temp.
  • System Fail
  • Power Fail
  • Probe Fail
  • Heater Fail (Optional)
  • Apgar Timer / Attend baby Timer.

Additional Features :

  • Keypad Locking.
  • Count up / down Timer.
  • 0° C / 0° F conversion
  • On board calibration.

Technical Specification :

  • Power Source : 230V AC + 1 50 Hz
  • Light Source : 6 watts LED bulb to examine babies
  • Heater Capacity : 650 Watts
  • Power Consumption : 800 Watts at 100% Heater Power

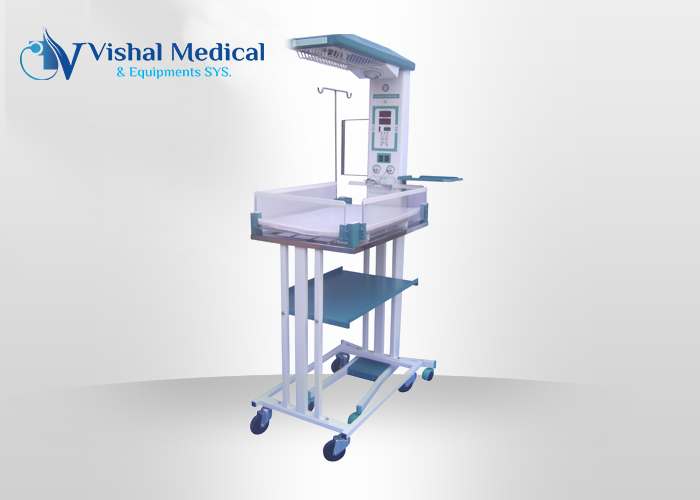

Fixed Cradle Radiant Warmer

Fixed Cradle Radiant Warmer

Neocare Radiant Warmers are innovatively designed for use in Nursery, Labour & Delivery suits to provide quick & effective treatment for the newborn infants, who suffer extreme of heat loss. Our advance microprocessor based controller is loaded with a full spectrum of unique features to support the needs of your most special patient.

Technical Specifications :

  • Power Source : 230V AC, ± 10%, 50Hz
  • Light Source : 6 watts LED bulb to examine babies
  • Heater Capacity : 600 watts
  • Power Consumption : 800 watts at 100% Heater power

Salient Features :

  • Easy To Use: As technology advanced, we have kept the warmer simple & easy to use with one touch controls.
  • Focused Heating: The heater with reflector makes it easier to work with the baby by efficiently providing even heat distribution across the cradle and not into the surrounding environment.
  • Servo Control Mode: Servo Control is an electronic feedback system which functions as a thermostat to maintain a constant temperature at the site of Skin Probe by regulating the heat output of Radiant Warmer. Maintaining a constant abdominal Skin temperature between 36.5 & 37.0°C is the simplest way to provide a " thermoneutral" environment, minimizing the no. of calories needed to maintain normal body temperature & reducing the risks of cold stress or overheating. Servo control is the only acceptable method of heat regulation for the Infant cared for under a Radiant Warmer.
  • Air Control Mode:Air Control is an electronic feedback system which functions as a thermostat to maintain a constant temperature of baby cradle by regulating the heat output of Radiant Warmer. It also acts as a WATCH DOG as Air over temperature cuts off heater even if the Warmer is operating is Servo Mode.
  • Manual Mode: The Manual mode allows the Warmer to be kept 'baby ready' without nuisance alarms. When needed the Warmer provides safe, powerful & controlled warming to restore the temperature drop experienced by the baby immediately after delivery.

Mechanical Specifications :

  • Easy access of Infant from all sides with thick Acrylic collapsible side panels
  • Acrylic baby tray with Infant's Head up / down facility & foam mattress.
  • Provision for positioning X - ray cassette.
  • S.S. Tray with slot to use under surface photo therapy.
  • Swivelling warming source for taking X - ray
  • Consist of CERAMIC INFRA RED / SILICON QUARTZ GLASS HEATER
  • S.S. reflector with safety grill designed such to achieve uniform temperature & easy cleaning without any electrical shock hazard.
  • Instrument tray, pole for Infusion pump & I.V. Stand.
  • Examination lamp with sufficient illumination to access accurate Infant colour during procedures.
  • M.S. Fabrication with powder coated paint.
  • Mounted on castors for easy mobility.

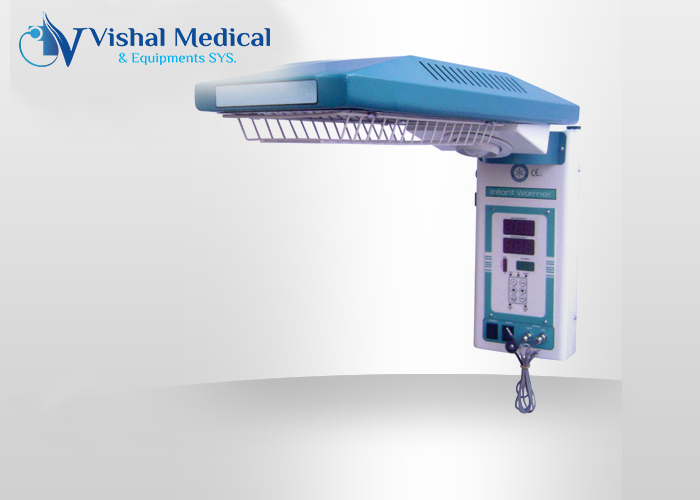

Wall Mounting Radiant Warmer

Wall Mounting Radiant Warmer

Neocare Radiant Warmers are innovatively designed for use in Nursery, Labour & Delivery suits to provide quick & effective treatment for the newborn infants, who suffer extreme of heat loss. Our advance microprocessor based controller is loaded with a full spectrum of unique features to support the needs of your most special patient.

Neocare Wall mounting Warmer is a simple & low cost warmer, designed to use for short period & during procedures i.e. Emergency Resuscitation in labour rooms & operation theaters as it requires minimum space.

Salient Features :

  • Easy To Use: As technology advanced, we have kept the warmer simple & easy to use with one touch controls.
  • Focused Heating: The heater with reflector makes it easier to work with the baby by efficiently providing even heat distribution across the cradle and not into the surrounding environment.
  • Servo Control Mode: Servo Control is an electronic feedback system which functions as a thermostat to maintain a constant temperature at the site of Skin Probe by regulating the heat output of Radiant Warmer. Maintaining a constant abdominal Skin temperature between 36.5 & 37.0°C is the simplest way to provide a " thermoneutral" environment, minimizing the no. of calories needed to maintain normal body temperature & reducing the risks of cold stress or overheating. Servo control is the only acceptable method of heat regulation for the Infant cared for under a Radiant Warmer.
  • Air Control Mode: Air Control is an electronic feedback system which functions as a thermostat to maintain a constant temperature of baby cradle by regulating the heat output of Radiant Warmer. It also acts as a WATCH DOG as Air over temperature cuts off heater even if the Warmer is operating is Servo Mode.
  • Manual Mode: The Manual mode allows the Warmer to be kept 'baby ready' without nuisance alarms. When needed the Warmer provides safe, powerful & controlled warming to restore the temperature drop experienced by the baby immediately after delivery.

Mechanical Specifications :

  • Swivelling warming source for taking X - ray
  • Consist of CERAMIC INFRA RED / SILICON QUARTZ GLASS HEATER
  • S.S. reflector with safety grill designed such to achieve uniform temperature & easy cleaning without any electrical shock hazard.
  • Examination lamp with sufficient illumination to access accurate Infant colour during procedures.
  • M.S. Fabrication with powder coated paint.

Technical Specifications :

  • Power Source : 230V AC, ± 10%, 50Hz
  • Light Source : 6 watts LED bulb to examine babies
  • Heater Capacity : 600 watts
  • Power Consumption : 800 watts at 100% Heater power

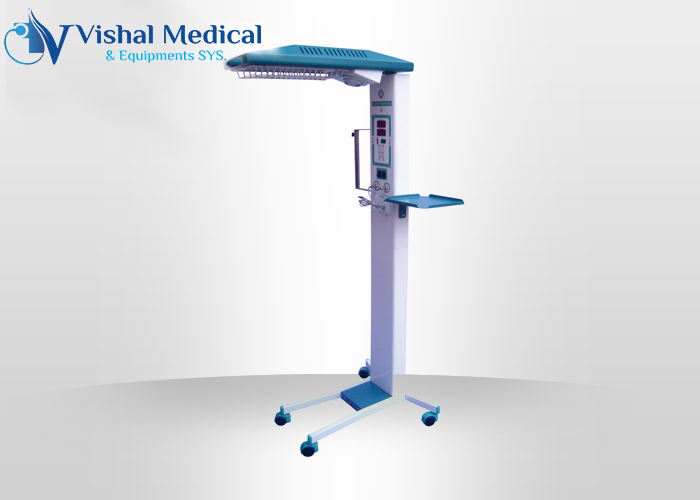

RADIANT WARMER STAND

RADIANT WARMER STAND

Neocare Radiant Warmers are innovatively designed for use in Nursery, Labour & Delivery suits to provide quick & effective treatment for the newborn infants, who suffer extreme of heat loss. Our advance microprocessor based controller is loaded with a full spectrum of unique features to support the needs of your most special patient.

Salient Features :

  • Easy To Use: As technology advanced, we have kept the warmer simple & easy to use with one touch controls.
  • Focused Heating: The heater with reflector makes it easier to work with the baby by efficiently providing even heat distribution across the cradle and not into the surrounding environment.
  • Servo Control Mode: Servo Control is an electronic feedback system which functions as a thermostat to maintain a constant temperature at the site of Skin Probe by regulating the heat output of Radiant Warmer. Maintaining a constant abdominal Skin temperature between 36.5 & 37.0°C is the simplest way to provide a " thermoneutral" environment, minimizing the no. of calories needed to maintain normal body temperature & reducing the risks of cold stress or overheating. Servo control is the only acceptable method of heat regulation for the Infant cared for under a Radiant Warmer.
  • Air Control Mode: Air Control is an electronic feedback system which functions as a thermostat to maintain a constant temperature of baby cradle by regulating the heat output of Radiant Warmer. It also acts as a WATCH DOG as Air over temperature cuts off heater even if the Warmer is operating is Servo Mode.
  • Manual Mode: The Manual mode allows the Warmer to be kept 'baby ready' without nuisance alarms. When needed the Warmer provides safe, powerful & controlled warming to restore the temperature drop experienced by the baby immediately after delivery.

Mechanical Specifications :

  • Swivelling warming source for taking X - ray
  • Consist of CERAMIC INFRA RED / SILICON QUARTZ GLASS HEATER
  • S.S. reflector with safety grill designed such to achieve uniform temperature & easy cleaning without any electrical shock hazard.
  • Examination lamp with sufficient illumination to access accurate Infant colour during procedures.
  • M.S. Fabrication with powder coated paint.
  • Instrument tray, pole for Infusion pump & I.V. Stand.
  • Mounted on castors for easy mobility.

Technical Specifications :

  • Power Source : 230V AC, ± 10%, 50Hz
  • Light Source : 6 watts LED bulb to examine babies
  • Heater Capacity : 600 watts
  • Power Consumption : 800 watts at 100% Heater power

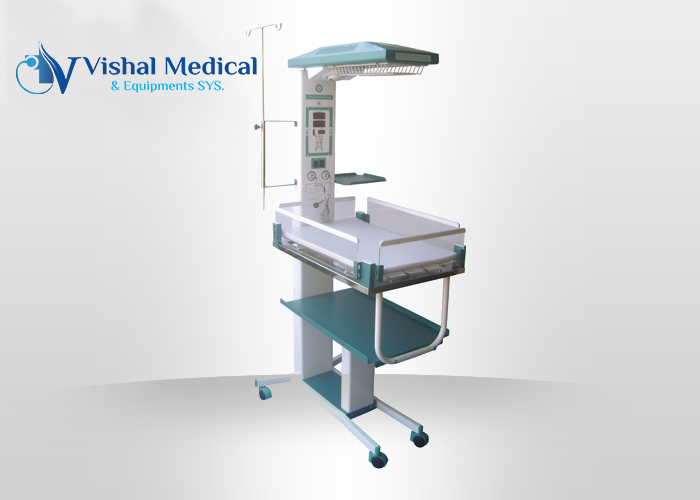

RADIANT WARMER WITH DETACHABLE TROLLEY

RADIANT WARMER WITH DETACHABLE TROLLEY

Neocare Radiant Warmers are innovatively designed for use in Nursery, Labour & Delivery suits to provide quick & effective treatment for the newborn infants, who suffer extreme of heat loss. Our advance microprocessor based controller is loaded with a full spectrum of unique features to support the needs of your most special patient.

Salient Features :

  • Easy To Use: As technology advanced, we have kept the warmer simple & easy to use with one touch controls.
  • Focused Heating: The heater with reflector makes it easier to work with the baby by efficiently providing even heat distribution across the cradle and not into the surrounding environment.
  • Servo Control Mode: Servo Control is an electronic feedback system which functions as a thermostat to maintain a constant temperature at the site of Skin Probe by regulating the heat output of Radiant Warmer. Maintaining a constant abdominal Skin temperature between 36.5 & 37.0°C is the simplest way to provide a " thermoneutral" environment, minimizing the no. of calories needed to maintain normal body temperature & reducing the risks of cold stress or overheating. Servo control is the only acceptable method of heat regulation for the Infant cared for under a Radiant Warmer.
  • Air Control Mode: Air Control is an electronic feedback system which functions as a thermostat to maintain a constant temperature of baby cradle by regulating the heat output of Radiant Warmer. It also acts as a WATCH DOG as Air over temperature cuts off heater even if the Warmer is operating is Servo Mode.
  • Manual Mode: The Manual mode allows the Warmer to be kept 'baby ready' without nuisance alarms. When needed the Warmer provides safe, powerful & controlled warming to restore the temperature drop experienced by the baby immediately after delivery.

Mechanical Specifications :

  • Easy access of Infant from all sides with thick Acrylic collapsible side panels
  • Acrylic baby tray with Infant's Head up / down facility & foam mattress.
  • Provision for positioning X - ray cassette.
  • S.S. Tray with slot to use under surface photo therapy.
  • Swivelling warming source for taking X - ray
  • Consist of CERAMIC INFRA RED / SILICON QUARTZ GLASS HEATER
  • S.S. reflector with safety grill designed such to achieve uniform temperature & easy cleaning without any electrical shock hazard.
  • Instrument tray, pole for Infusion pump & I.V. Stand.
  • Examination lamp with sufficient illumination to access accurate Infant colour during procedures.
  • M.S. Fabrication with powder coated paint.
  • Mounted on castors for easy mobility.

Technical Specifications :

  • Power Source : 230V AC, ± 10%, 50Hz
  • Light Source : 6 watts LED bulb to examine babies
  • Heater Capacity : 600 watts
  • Power Consumption : 800 watts at 100% Heater power
